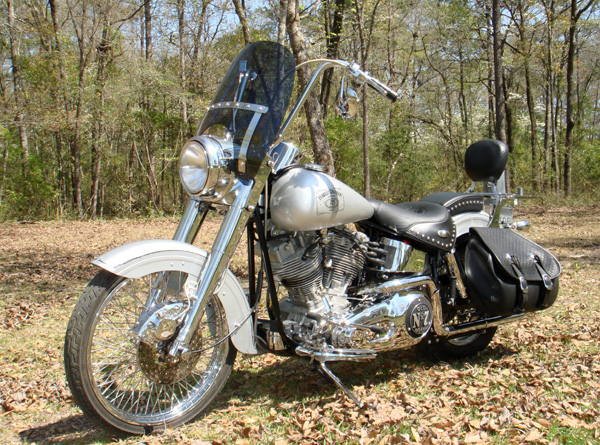

1978 Harley-Davidson FLH Shovelhead
Custom                                                                    Old No. 7
850-377-9136
Classic custom built 1978 Harley-Davidson
FLH Shovelhead, the ultimate rider! Only just
over 6k miles!  96ci Stroker Motor with S&S
Dual Plug Heads, Andrews "B" Grind Cam,
2006 RevTech Softail 5 Speed transmission,
Kick & Electric Start, brand new V-Twin
Hydraulic FLH 1977 style front end, all
wrapped up in a 2006 Paughco Swingarm
Frame!  Check out all the specs below, no
expense sparred, excellent build!
Feel free to contact me for further details or with
any questions you may have.
Diane Marie      850-377-9136
Click on
any
to
enlarge

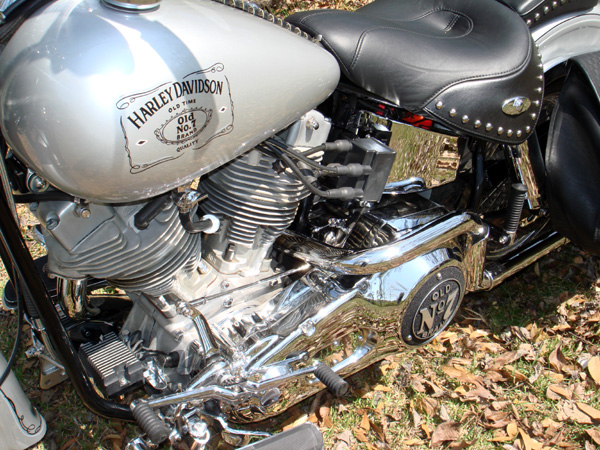

Engine
Year/Type:  1978 H-D Shovelhead Stroker 96 c.i.
Builder:  Chris Flood
Cases:  H-D
Fly Wheels:  S&S 4 5/8" Stroke
Rods:  S&S
Pistons:  S&S 10:1
Cylinders: S&S 3 5/8 Big Bore
Heads:  S&S Dual Plug
Cam:  Andrews "B" Grind
Valves:  Diamond
Pushrods:  S&S
Lifters:  Jims "Big Axle" Hydraulic
Oil Pump:  S&S
Carb:  S&S "E" w/ Modified Throat & Booster
Gaskets:  James
Air Cleaner:  S&S/K&N
Ignition:  Compu-Fire-Single Fire Dual Plug
Exhaust:  True Duals- Fishtails
Oil Lines:  Braided Stainless
Finish:  Powder Coat

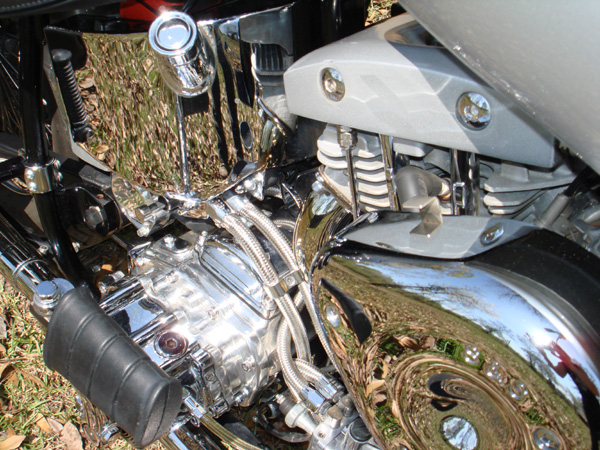

Transmission

Year/Type:  2006 Rev Tech Softail 5 Speed w/ Kicker
Primary Drive:  Rivera Heavy Duty Compensating
Sprocket/Primary Chain
Clutch:  Rivera Pro Clutch II
Gears:  Close Ration/Back Cut
Finish:  Polished

Frame

Year/Type:  2006 Paughco Swingarm
Rake:  30
Stretch:  Back Bone - 2" Rear Legs - 2 1/2"
Finish:  Powder Coat

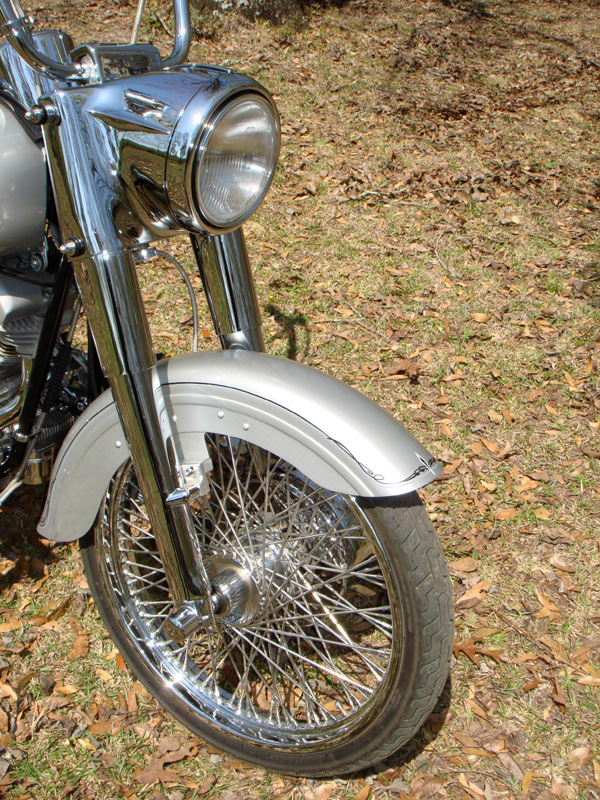

Forks

Year/Type:  2006 V-Twin Hydraulic - 1977 Style
Extensions:  Stock FLH Length
Finish:  Chrome
Wheels

Front ~ Builder/Size:  American Wire Wheel 2
3/4" x 21" 80 Spoke Stainless/Chrome
Tire:  Dunlop 402

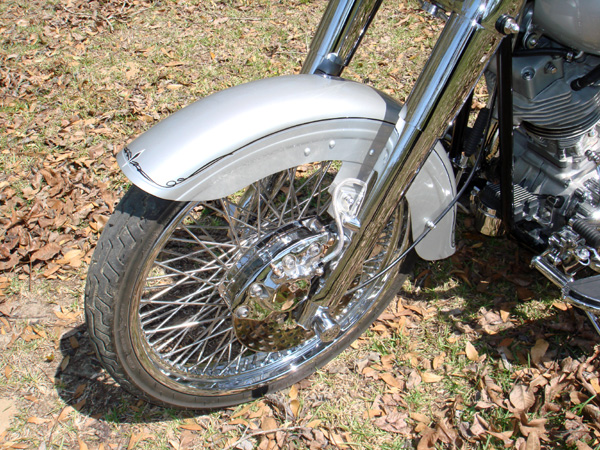

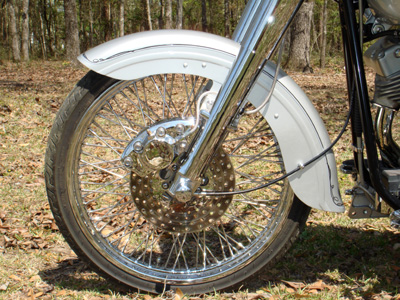

Brakes

V-Twin FLH Banana Style Caliper/ Russel Drilled
Rotor

Rear ~ Builder/Size:  American Wire Wheel 3.5" x
16" 80 Spoke Stainless/Chrome
Tire:  Dunlop 401 Blackwall

Brakes
GMA 11 1/2" Disc GMA Driller Rotor
Suspension

Swingarm:  2006 V-Twin Stock FLH
Shocks:  Progressive Gas Charged 12"
Axle:  V-Twin Stock FLH
Final Drive:  Chain Tsubaki O-Ring
Finish:  Powder Coat
Handlebars/Risers:  V-Twin/ Chris Flood
Cables:  Stainless Braided/Coated Clutch - Internal Throttle
Mirrors:  One
Head Light:  V-Twin Stock FLH
Fuel Tanks:  V-Twin Flat Side 5 Gal
Oil Tank:  V-Twin Chrome Wrap around 3 1/2 Quart
Front Fender:  V-Twin Ducktail Custom
Rear Fender:  V-Twin Hinged FLH
Gauges:  V-Twin FLH Speedo
Hand Controls:  Custom Billet Smooth Series

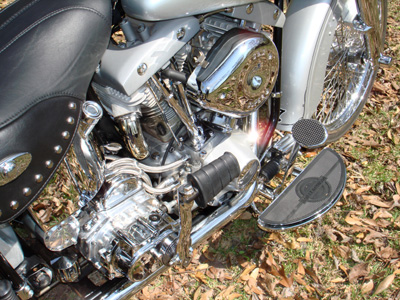

Foot Controls:  Custom Chrome Footboards & Forward Controls
86-99 FLST
Electrical:  Chris Flood
Seat:  2007 H-D FLST Solo & Pillion Pad
Tail Light:  V-Twin Tombstone w/ Glass Lens
Turn Signals:  N/A
Windshield:  Quick Detach Smoked Short FLHR Road King
